W*drive
- Winter
Keep winter under control.

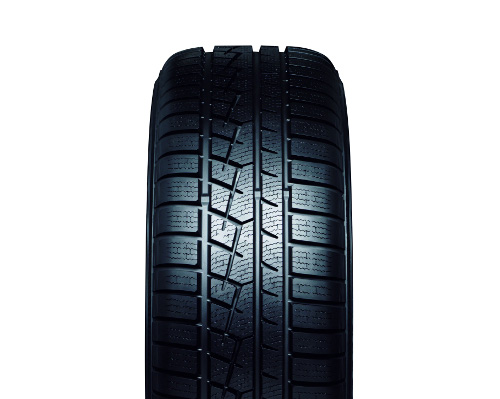

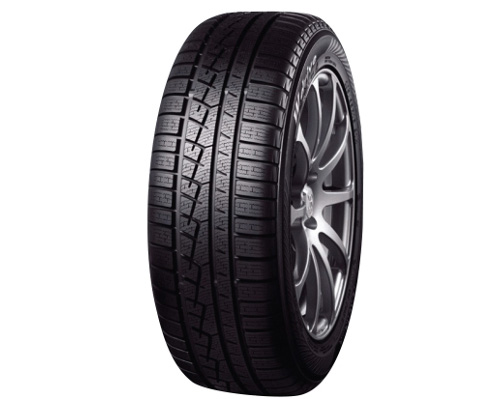

Today's performance cars and SUV's need a winter tire that provides balanced performance across various winter road conditions. Introducing the W.drive - a tire that actually adapts to road surfaces and temperatures offering drivers confidence, no matter the weather.
*Ratings are based on internal rankings within the Winter category
Tire Size | Part# |
Load ID |
UTQG Rating |
Unit Weight (lbs) |
Rim Width (inches) |
Inflated Dimensions |
Tread Width |
Tread Depth 32/in |
Loaded Dimensions |
Max Load at Cold Inflation Pressure (lbs. @psi)Single |
Type | |||
Meas. | Appr. |
Overall Width (inches) |
Overall Diameter (inches) |
Static Radius (inches) |
Rev/ Mile | |||||||||
195/50R16 88V | 90270 | XL | 19.4 | 6 | 5.5 - 7.0 | 7.7 | 23.8 | 6.5 | 11 | 11.1 | 872 | 1235@50 | BW | |
205/55R16 94V | 90227 | XL | 21.3 | 6.5 | 5.5 - 7.5 | 8.3 | 24.9 | 7.1 | 11 | 11.5 | 835 | 1477@50 | BW | |
215/55R16 97V | 90229 | XL | 22.3 | 7 | 6.0 - 7.5 | 8.7 | 25.4 | 7.2 | 11 | 11.7 | 818 | 1609@50 | BW | |
225/55R16 99V | 90235 | XL | 25.2 | 7 | 6.0 - 8.0 | 9.1 | 25.9 | 7.5 | 11 | 11.9 | 801 | 1709@50 | BW | |
215/45R17 91V | 90228 | XL | 22.3 | 7 | 7.0 - 8.0 | 8.3 | 24.8 | 7.7 | 11 | 11.5 | 837 | 1356@50 | BW | |
215/50R17 95V | 90261 | XL | 23.2 | 7 | 6.0 - 7.5 | 8.7 | 25.7 | 7.2 | 11 | 11.9 | 809 | 1521@50 | BW | |
215/55R17 98V | 90230 | XL | 23.9 | 7 | 6.0 - 7.5 | 8.6 | 26.5 | 7.2 | 11 | 12.2 | 785 | 1653@50 | BW | |
225/45R17 94V | 90232 | XL | 23.4 | 7.5 | 7.0 - 8.5 | 8.8 | 25.1 | 8 | 11 | 11.7 | 828 | 1477@50 | BW | |
225/50R17 98V | 90234 | XL | 24.1 | 7 | 6.0 - 8.0 | 8.9 | 26 | 7.5 | 11 | 12 | 798 | 1653@50 | BW | |
225/55R17 101V | 90236 | XL | 25.3 | 7 | 6.0 - 8.0 | 8.9 | 26.9 | 7.5 | 11 | 12.4 | 771 | 1819@50 | BW | |
235/45R17 97V | 90237 | XL | 24.4 | 8 | 7.5-9.0 | 9.2 | 25.5 | 8.4 | 11 | 11.8 | 814 | 1609@50 | BW | |
235/55R17 103V | 90216 | XL | 27.2 | 7.5 | 6.5-8.5 | 9.5 | 27.3 | 7.8 | 11 | 12.5 | 760 | 1929@50 | BW | |
235/60R17 102H | 90257 | SL | 29.9 | 7 | 6.5 - 8.5 | 9.3 | 28.1 | 7.3 | 11 | 12.9 | 748 | 1874@51 | BW | |
245/45R17 99V | 90218 | XL | 25.3 | 8 | 7.5-9.0 | 9.4 | 25.9 | 8.7 | 11 | 12 | 803 | 1708@50 | BW | |
275/55R17 109V | 90245 | SL | 36 | 8.5 | 7.5O-9.5 | 11 | 28.9 | 9.4 | 11 | 13.1 | 720 | 2271@51 | BW | |
215/40R18 85V | 90266 | SL | 21.6 | 7.5 | 7.0-8.5 | 8.8 | 24.7 | 7.7 | 11 | 11.6 | 841 | 1135@51 | BW | |
215/45R18 93V | 90265 | XL | 23.2 | 7 | 7.0-8.0 | 8.2 | 25.8 | 7.7 | 11 | 12 | 804 | 1433@50 | BW | |
225/40R18 92V | 90231 | XL | 22 | 8 | 7.5 - 9.0 | 9 | 25.2 | 8 | 11 | 11.8 | 824 | 1389@50 | BW | |
225/45R18 95V | 90233 | XL | 24.5 | 7.5 | 7.0-8.5 | 8.7 | 26.1 | 8 | 11 | 12.2 | 794 | 1521@50 | BW | |
225/50R18 95V | 90254 | SL | 25.5 | 7 | 6.0-8.0 | 8.9 | 26.9 | 7.5 | 11 | 12.5 | 772 | 1521@51 | BW | |
235/40R18 95V | 90258 | XL | 24.1 | 8.5 | 8.0 - 9.5 | 9.4 | 25.5 | 8.4 | 11 | 11.9 | 814 | 1521@50 | BW | |
235/45R18 94V | 90264 | SL | 25.5 | 8 | 7.5-9.0 | 9.2 | 26.5 | 8.4 | 11 | 12.3 | 784 | 1477@51 | BW | |
235/55R18 100V | 90253 | SL | 28.8 | 7.5 | 6.5 - 8.5 | 9.6 | 28.3 | 8.1 | 11 | 13 | 734 | 1764@51 | BW | |
245/40R18 97V | 90217 | XL | 25.7 | 8.5 | 8.0 - 9.5 | 9.5 | 25.9 | 8.7 | 11 | 12.1 | 803 | 1609@50 | BW | |
245/45R18 100V | 90219 | XL | 26.6 | 8 | 7.5-9.0 | 9.4 | 26.8 | 8.7 | 11 | 12.4 | 775 | 1763@50 | BW | |
245/50R18 104V | 90221 | XL | 28.4 | 7.5 | 7.0-8.5 | 9.6 | 27.8 | 8.1 | 11 | 12.8 | 746 | 1984@50 | BW | |
255/40R18 99V | 90222 | XL | 26.4 | 9 | 8.5-10.0 | 10.1 | 26.2 | 9.1 | 11 | 12.2 | 793 | 1708@50 | BW | |
255/45R18 103V | 90224 | XL | 27.8 | 8.5 | 8.0-9.5 | 10 | 27.1 | 9.1 | 11 | 12.6 | 767 | 1929@50 | BW | |
255/55R18 109V | 90226 | XL | 35 | 8 | 7.0 - 9.0 | 10.3 | 28.9 | 8.7 | 11 | 13.3 | 719 | 2271@50 | BW | |
265/35R18 97V | 90259 | XL | 26.2 | 9.5 | 9.0 - 10.5 | 10.6 | 25.4 | 9.6 | 11 | 11.9 | 819 | 1609@50 | BW | |
235/55R19 101V | 90263 | SL | 30.6 | 7.5 | 6.5-8.5 | 9.6 | 29.2 | 8.1 | 11 | 13.5 | 712 | 1819@51 | BW | |
245/45R19 102V | 90238 | XL | 28 | 8 | 7.5 - 9.0 | 9.4 | 27.8 | 8.7 | 11 | 13 | 746 | 1874@50 | BW | |
255/40R19 100V | 90262 | XL | 27.8 | 9 | 8.5 - 10.0 | 10.1 | 27.2 | 9.1 | 11 | 12.7 | 763 | 1764@50 | BW | |
255/50R19 107V | 90225 | XL | 35 | 8 | 7.0-9.0 | 10.4 | 29.1 | 8.7 | 11 | 13.4 | 715 | 2147@50 | BW | |
255/55R19 111V | 90252 | XL | 34.1 | 8 | 7.0-9.0 | 10.4 | 30.2 | 8.8 | 11 | 11 | 696 | 2403@50 | BW | |
265/50R19 110V | 90251 | XL | 35.9 | 8.5 | 7.5-9.5 | 10.9 | 29.4 | 9.4 | 11 | 13.5 | 706 | 2337@50 | BW | |
275/45R19 108V | 90246 | XL | 35.2 | 9 | 8.5-10.5 | 10.7 | 28.9 | 10.2 | 11 | 13.4 | 718 | 2204@50 | BW | |
255/50R20 109V | 90250 | XL | 32.7 | 8 | 7.0-9.0 | 10.2 | 30.2 | 8.8 | 11 | 14 | 693 | 2271@50 | BW | |
275/40R20 106V | 90247 | XL | 34 | 9.5 | 9.0-11.0 | 10.8 | 28.8 | 10.2 | 11 | 13.4 | 721 | 2094@50 | BW | |
275/45R20 110V | 90249 | XL | 36.9 | 9 | 8.5 - 10.5 | 10.7 | 29.8 | 9.9 | 11 | 13.8 | 698 | 2337@50 | BW | |
295/40R20 110V | 90248 | XL | 38.9 | 10.5 | 10.0-11.5 | 11.9 | 29.2 | 10.9 | 11 | 13.6 | 711 | 2337@50 | BW | |
245/40R21 100V | 90271 | 30.4 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | RBL | ||||
265/40R21 105V | 90272 | 34.8 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | RBL |
