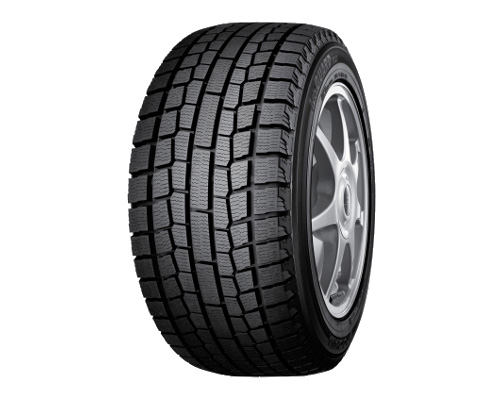

iceGUARD iG20
- Winter
Winter tire technology ahead of its time.
With the all-new Yokohama iceGUARD iG20, today’s winter drivers are better equipped to face the challenges of severe weather road conditions. Loaded with advanced traction technologies, the iceGUARD iG20 allows for more confident handling on both ice and snow.
*Ratings are based on internal rankings within the Winter category
Tire Size | Part# |
Load ID |
UTQG Rating |
Unit Weight (lbs) |
Rim Width (inches) |
Inflated Dimensions |
Tread Width |
Tread Depth 32/in |
Loaded Dimensions |
Max Load at Cold Inflation Pressure (lbs. @psi)Single |
Type | |||
Meas. | Appr. |
Overall Width (inches) |
Overall Diameter (inches) |
Static Radius (inches) |
Rev/ Mile | |||||||||
175/65R14 82Q | 02016 | SL | 15.6 | 5 | 5.0 - 6.0 | 7 | 23 | 5.8 | 11 | 10.5 | 905 | 1047@51 | BW | |
185/65R14 86Q | 02021 | SL | 16.7 | 5.5 | 5.0 - 6.5 | 7.4 | 23.5 | 6.1 | 11 | 10.7 | 885 | 1168@51 | BW | |
175/65R15 84R | 02067 | SL | 16.5 | 5 | 5.0 - 6.0 | 6.9 | 24 | 5.8 | 11 | 11 | 866 | 1102@51 | BW | |
185/55R15 82T | 02074 | SL | 16.7 | 6 | 5.0 - 6.5 | 7.5 | 23.2 | 6.5 | 11 | 10.7 | 896 | 1047@51 | BW | |
185/60R15 84R | 02020 | SL | 17.2 | 5.5 | 5.0 - 6.5 | 7.2 | 23.7 | 6.1 | 11 | 10.9 | 876 | 1102@51 | BW | |
185/65R15 88R | 02022 | SL | 17.5 | 5.5 | 5.0 - 6.5 | 7.4 | 24.5 | 6.1 | 11 | 11.2 | 848 | 1235@51 | BW | |
195/55R15 85T | 02025 | SL | 18.1 | 6 | 5.5 - 7.0 | 7.8 | 23.6 | 6.8 | 11 | 10.9 | 881 | 1135@51 | BW | |
195/60R15 88R | 02028 | SL | 17.8 | 6 | 5.5 - 7.0 | 7.8 | 24.2 | 6.5 | 11 | 11.1 | 858 | 1235@51 | BW | |
195/65R15 91R | 02029 | SL | 19.6 | 6 | 5.5 - 7.0 | 7.9 | 25 | 6.5 | 11 | 11.4 | 829 | 1356@51 | BW | |
205/60R15 91R | 02034 | SL | 19.7 | 6 | 5.5 - 7.5 | 8.1 | 24.7 | 6.8 | 11 | 11.3 | 841 | 1356@51 | BW | |
205/65R15 94R | 02036 | SL | 20.5 | 6 | 5.5 - 7.5 | 8.1 | 25.5 | 6.8 | 11 | 11.6 | 815 | 1477@51 | BW | |
205/70R15 96T | 51100 | 30 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | BW | ||||
205/70R15 96Q | 02039 | SL | 22.4 | 6 | 5.0 - 6.5 | 8.2 | 26.3 | 6.8 | 11 | 11.9 | 790 | 1565@51 | BW | |
215/60R15 94R | 02044 | SL | 22.2 | 6.5 | 6.0 - 7.5 | 8.5 | 25.2 | 7.1 | 11 | 11.5 | 823 | 1477@51 | BW | |
215/70R15 98Q | 02050 | SL | 24.8 | 6.5 | 5.5 - 7.0 | 8.9 | 27 | 7.1 | 11 | 12.2 | 770 | 1653@51 | BW | |
215/70R15 98T | 51101 | 30 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | BW | ||||
185/55R16 83T | 02068 | SL | 17.5 | 6 | 5.0 - 6.5 | 7.5 | 24.1 | 6.5 | 11 | 11.2 | 861 | 1074@51 | BW | |
195/50R16 84T | 02024 | SL | 18.3 | 6 | 5.5 - 7.0 | 7.6 | 23.9 | 6.8 | 11 | 11.1 | 871 | 1102@51 | BW | |
195/55R16 87T | 02026 | SL | 19.2 | 6 | 5.5 - 7.0 | 7.7 | 24.6 | 6.5 | 11 | 11.3 | 845 | 1201@51 | BW | |
205/50R16 87T | 02031 | SL | 20.9 | 6.5 | 5.5 - 7.5 | 8.1 | 24.3 | 7.4 | 11 | 11.3 | 854 | 2101@51 | BW | |
205/55R16 91T | 02033 | SL | 21.8 | 6.5 | 5.5 - 7.5 | 8.3 | 25 | 7.4 | 11 | 11.5 | 829 | 1356@51 | BW | |
205/60R16 92R | 02035 | SL | 20.5 | 6 | 5.5 - 7.5 | 8.1 | 25.7 | 6.8 | 11 | 11.8 | 807 | 1389@51 | BW | |
205/65R16 95R | 02037 | SL | 22 | 6 | 5.5 - 7.5 | 8.1 | 26.4 | 6.8 | 11 | 12 | 787 | 1521@51 | BW | |
215/55R16 93T | 02042 | SL | 22.5 | 7 | 6.0 - 7.5 | 8.8 | 25.5 | 7.7 | 11 | 11.7 | 815 | 1433@51 | BW | |
215/60R16 95R | 02045 | SL | 22.9 | 6.5 | 6.9 - 7.5 | 8.5 | 26.2 | 7.1 | 11 | 12 | 793 | 1521@51 | BW | |
215/65R16 98R | 02048 | SL | 23.9 | 6.5 | 6.0 - 7.5 | 8.5 | 27.1 | 7.1 | 11 | 12.3 | 767 | 1653@51 | BW | |
215/70R16 100T | 51102 | SL | 25.9 | 6.5 | 5.5 - 7.0 | 8.9 | 27.6 | 7 | 13 | 12.5 | 751 | 1764@51 | BW | |
215/65R16 98T | 51108 | SL | 25.7 | 6.5 | 6.0 - 7.5 | 8.7 | 26.9 | 7 | 13 | 12.2 | 772 | 1653@51 | BW | |
225/50R16 92T | 02053 | SL | 23.1 | 7 | 6.0 - 8.0 | 8.9 | 25.1 | 8.1 | 11 | 11.5 | 828 | 1389@51 | BW | |
225/55R16 95T | 02055 | SL | 24.2 | 7 | 6.0 - 8.0 | 9.1 | 25.9 | 8.1 | 11 | 11.9 | 803 | 1521@51 | BW | |
225/60R16 98R | 02058 | SL | 24.1 | 6.5 | 6.0 - 8.0 | 8.7 | 26.7 | 7.5 | 12 | 12.2 | 778 | 1653@51 | BW | |
225/65R16 100R | 02060 | SL | 25.6 | 6.5 | 6.0 - 8.0 | 9 | 27.6 | 7.5 | 12 | 12.5 | 751 | 1764@51 | BW | |
225/70R16 103T | 51103 | 30 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | BW | ||||
235/65R16 103R | 02063 | SL | 27.6 | 7 | 6.5 - 8.5 | 9.4 | 28.1 | 7.8 | 12 | 12.7 | 740 | 1929@51 | BW | |
235/70R16 106T | 51104 | SL | 30.3 | 7 | 6.0 - 8.0 | 9.5 | 28.8 | 7.7 | 13 | 13 | 722 | 2094@51 | BW | |
245/70R16 107T | 51105 | 30 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | BW | ||||
265/70R16 112T | 51106 | 30 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | BW | ||||
275/70R16 114T | 51107 | 30 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | BW | ||||
205/50R17 93T | 02032 | XL | 21.8 | 6.5 | 5.5 - 7.5 | 8.1 | 25.1 | 7.4 | 11 | 11.7 | 828 | 1433@50 | BW | |
215/45R17 87T | 02040 | SL | 22 | 7 | 7.0 - 8.0 | 8.3 | 24.8 | 7.7 | 11 | 11.5 | 837 | 1201@51 | BW | |
215/50R17 91T | 02041 | SL | 23.6 | 7 | 6.0 - 7.5 | 8.7 | 25.5 | 7.7 | 11 | 11.8 | 814 | 1356@51 | BW | |
215/55R17 94T | 02043 | SL | 24.4 | 7 | 6.0 - 7.5 | 8.7 | 26.5 | 7.7 | 11 | 12.2 | 784 | 1477@51 | BW | |
215/60R17 96R | 02046 | SL | 24.9 | 6.5 | 6.0 - 7.5 | 8.4 | 27.3 | 7.1 | 11 | 12.5 | 760 | 1565@51 | BW | |
215/60R17 96T | 51117 | SL | 26.4 | 6.5 | 6.0 - 7.5 | 8.7 | 27 | 7 | 13 | 12.4 | 768 | 1565@51 | BW | |
215/65R17 99R | 02049 | SL | 26 | 6.5 | 6.0 - 7.5 | 8.4 | 28.1 | 7.1 | 11 | 12.8 | 738 | 1709@51 | BW | |
225/45R17 91T | 02051 | SL | 23.6 | 7.5 | 7.0 - 8.5 | 8.9 | 25.1 | 8.1 | 11 | 11.7 | 828 | 1356@51 | BW | |
225/50R17 94T | 02054 | SL | 24.2 | 7 | 6.0 - 8.0 | 8.9 | 25.9 | 8.1 | 11 | 12 | 803 | 1477@51 | BW | |
225/55R17 97T | 02056 | SL | 26.4 | 7 | 6.0 - 8.0 | 9 | 27 | 8.1 | 11 | 12.4 | 770 | 1609@51 | BW | |
225/60R17 99R | 02059 | SL | 25.8 | 6.5 | 6.0 - 8.0 | 8.7 | 27.7 | 7.5 | 12 | 12.7 | 750 | 1709@51 | BW | |
225/60R17 99T | 51118 | 30 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | BW | ||||
225/65R17 102T | 51111 | SL | 28.4 | 6.5 | 6.0 - 8.0 | 9.1 | 28.3 | 7.3 | 13 | 12.9 | 734 | 1874@51 | BW | |
235/45R17 94T | 02061 | SL | 24.4 | 8 | 7.5 - 9.0 | 9.3 | 25.4 | 8.4 | 12 | 11.8 | 818 | 1477@51 | BW | |
235/55R17 99T | 02062 | SL | 27.5 | 7.5 | 6.5 - 8.5 | 9.4 | 27.3 | 8.4 | 12 | 12.5 | 761 | 1709@51 | BW | |
235/65R17 108T | 51112 | XL | 31.1 | 7 | 6.5 - 8.5 | 9.4 | 28.9 | 7.7 | 13 | 13.1 | 718 | 2205@50 | BW | |
245/45R17 95T | 02065 | SL | 25.8 | 8 | 7.5 - 9.0 | 9.4 | 25.8 | 8.9 | 12 | 11.9 | 804 | 1521@51 | BW | |
245/65R17 107T | 51113 | SL | 32.2 | 7 | 7.0 - 8.5 | 9.8 | 29.4 | 8 | 13 | 13.3 | 705 | 2149@51 | BW | |
245/70R17 110T | 51109 | 30 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | BW | ||||
255/60R17 106T | 51119 | 30 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | BW | ||||
265/65R17 112T | 51114 | SL | 36.5 | 8 | 7.5 - 9.5 | 10.8 | 30.4 | 8.7 | 13 | 13.7 | 684 | 2469@51 | BW | |
265/70R17 115T | 51110 | SL | 39.5 | 8 | 7.0 - 9.0 | 10.6 | 31.5 | 8.7 | 14 | 14.2 | 659 | 2679@51 | BW | |
275/65R17 115T | 51115 | SL | 40.7 | 8 | 7.5 - 9.5 | 10.9 | 31.1 | 9 | 14 | 14 | 667 | 2679@51 | BW | |
285/65R17 116T | 51116 | 30 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | BW | ||||
225/45R18 91T | 02052 | SL | 24.2 | 7.5 | 7.0 - 8.5 | 8.9 | 26.2 | 8.1 | 11 | 12.2 | 793 | 1356@51 | BW | |
225/55R18 98T | 02057 | SL | 27.2 | 7 | 6.0 - 8.0 | 9 | 27.9 | 8.1 | 11 | 12.9 | 744 | 1653@51 | BW | |
225/55R18 98T | 51128 | 30 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | BW | ||||
225/60R18 100T | 51122 | SL | 28.8 | 6.5 | 6.0 - 8.0 | 8.9 | 28.4 | 7.3 | 13 | 13.1 | 731 | 1764@51 | BW | |
225/65R18 103T | 51120 | 30 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | BW | ||||
235/45R18 94T | 02070 | SL | 25.5 | 8 | 7.5-9.0 | 9.2 | 26.5 | 8.4 | 12 | 12.3 | 784 | 1477@51 | BW | |
235/50R18 97T | 02071 | SL | 27 | 7.5 | 6.5 - 8.5 | 9.4 | 27.2 | 8.4 | 12 | 12.6 | 762 | 1609@51 | BW | |
235/55R18 100T | 51129 | 30 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | BW | ||||
235/60R18 107T | 51123 | 30 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | BW | ||||
235/65R18 106T | 51121 | 30 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | BW | ||||
245/40R18 93T | 02064 | SL | 25.8 | 8.5 | 8.0 - 9.5 | 9.6 | 25.9 | 8.9 | 12 | 12.1 | 803 | 1433@51 | BW | |
245/45R18 96T | 02066 | SL | 27.1 | 8 | 7.5 - 9.0 | 9.6 | 26.9 | 8.9 | 12 | 12.5 | 771 | 1565@51 | BW | |
255/55R18 109T | 51130 | XL | 35.1 | 7 | 6.0 - 8.0 | 10.5 | 29.1 | 8.9 | 13 | 13.3 | 715 | 2271@50 | BW | |
255/60R18 112T | 51124 | 30 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | BW | ||||
265/60R18 110T | 51125 |
