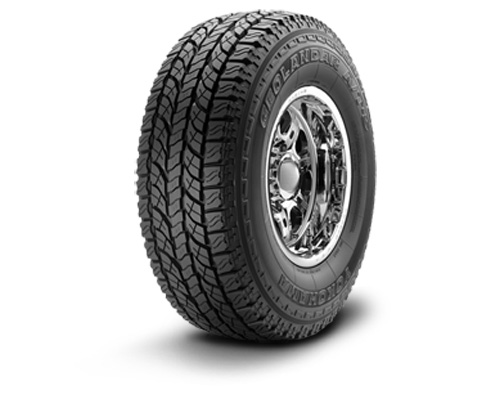

Geolandar A/T-S
- Suvs and Trucks
- All-Season
- Off-Road
- On-Off Highway
On-Road. Off-Road. No Problem.
Geolandar A/T-S all-terrain tires have an aggressive design that'll make your light truck or SUV stand tall. But the real beauty lies deeper. With features ranging from multi-stepped Grooves to Dual Interlocking Pyramid Sipes, every Geolandar A/T-S packs the absolute latest in technology. Get ready to experience on-road manners and off-road attitude with our latest, greatest generation of all-terrain tires.
*Ratings are based on internal rankings within the All-Season category
Tire Size | Part# |
Load ID |
UTQG Rating |
Unit Weight (lbs) |
Rim Width (inches) |
Inflated Dimensions |
Tread Width |
Tread Depth 32/in |
Loaded Dimensions |
Max Load at Cold Inflation Pressure (lbs. @psi)Single |
Type | |||
Meas. | Appr. |
Overall Width (inches) |
Overall Diameter (inches) |
Static Radius (inches) |
Rev/ Mile | |||||||||
30X9.50R15 104S | 01231 | C | 37.3 | 7.5 | 6.5 - 8.5 | 9.7 | 29.6 | 7.6 | 17 | 14 | 699 | 1985@50 | OWL | |
31X10.50R15 109S | 01223 | C | 43.7 | 8.5 | 7.0 - 9.0 | 10.7 | 30.6 | 8.3 | 17 | 14.4 | 680 | 2270@50 | OWL | |
32X11.50R15 113S | 01255 | C | 51.6 | 9 | 8.0 - 11.0 | 11.5 | 31.5 | 9.1 | 17 | 14.8 | 659 | 2535@50 | OWL | |
33X12.50R15 108S | 01256 | C | 54.3 | 10 | 8.0 - 11.0 | 12.8 | 32.5 | 9.8 | 18 | 15.5 | 636 | 2205@35 | OWL | |
205/70R15 96S | 01229 | SL | 500/A/B | 24.7 | 6 | 5.0 - 7.0 | 8.3 | 26.5 | 6.4 | 13 | 12 | 783 | 1565@51 | BW |
215/70R15 98S | 01261 | SL | 500/A/B | 26.2 | 6.5 | 5.5 - 7.0 | 8.8 | 26.9 | 6.7 | 13 | 12.1 | 774 | 1653@51 | BW |
LT215/75R15 100S | 01257 | C | 32.4 | 6 | 5.5 - 7.0 | 8.3 | 27.9 | 6.7 | 16 | 13.4 | 738 | 1765@50 | OWL | |
P225/70R15 100S | 01258 | SL | 500/A/B | 29.1 | 6.5 | 6.0 - 7.5 | 9.1 | 27.6 | 7 | 13 | 12.4 | 753 | 1753@51 | OWL |
P235/70R15 102S | 01245 | SL | 500/A/B | 31.1 | 7 | 6.0 - 8.0 | 9.6 | 28 | 7.3 | 13 | 12.6 | 743 | 1896@51 | OWL |
P235/75R15 108S | 01235 | XL | 500/A/B | 34.2 | 6.5 | 6.0 - 8.0 | 9.3 | 28.9 | 7.3 | 13 | 12.9 | 720 | 2183@50 | OWL |
LT235/75R15 104S | 01230 | C | 36.8 | 6.5 | 6.0 - 7.0 | 9.3 | 29.2 | 7.3 | 16 | 14 | 706 | 1985@50 | OWL | |
265/70R15 112S | 01228 | SL | 500/A/B | 38.1 | 8 | 7.0 - 9.0 | 10.9 | 29.7 | 8.3 | 13 | 13.2 | 700 | 2469@51 | BW |
215/60R16 95H | 01259 | SL | 500/A/A | 25.1 | 6.5 | 6.0 - 7.5 | 8.7 | 26.1 | 6.7 | 12 | 11.9 | 796 | 1521@51 | BW |
215/65R16 98H | 01260 | SL | 500/A/A | 26.2 | 6.5 | 6.0 - 7.5 | 8.7 | 27 | 6.7 | 12 | 12.3 | 768 | 1653@51 | BW |
215/70R16 100S | 01224 | SL | 500/A/B | 28 | 6.5 | 5.5 - 7.0 | 8.6 | 28 | 6.7 | 12 | 12.7 | 742 | 1764@51 | BW |
LT215/85R16 110R | 01244 | D | 37.9 | 6 | 5.5 - 7.0 | 8.7 | 30.5 | 6.3 | 16 | 14.6 | 676 | 2335@65 | OWL | |
225/70R16 102H | 01262 | SL | 500/A/B | 30.4 | 6.5 | 6.0 - 7.5 | 9.1 | 28.3 | 7 | 12 | 12.8 | 734 | 1874@51 | BW |
LT225/75R16 110R | 01243 | D | 37.7 | 6 | 6.0 - 7.0 | 8.8 | 29.5 | 7 | 16 | 14.1 | 699 | 2335@65 | OWL | |
235/60R16 100H | 01253 | SL | 500/A/A | 28.2 | 7 | 6.5 - 8.5 | 9.4 | 27 | 7.3 | 12 | 12.3 | 769 | 1764@51 | BW |
P235/70R16 107S | 01239 | XL | 500/A/B | 33.7 | 7 | 6.0 - 8.0 | 9.5 | 29.2 | 7.3 | 13 | 13.2 | 711 | 2149@50 | OWL |
LT235/85R16 120R | 01232 | E | 49.6 | 6.5 | 6.0 - 7.5 | 9.4 | 31.9 | 7.3 | 16 | 15.2 | 647 | 3042@80 | OWL | |
P245/70R16 106S | 01236 | SL | 500/A/B | 34.8 | 7 | 6.5 - 8.0 | 9.8 | 29.7 | 7.6 | 13 | 13.3 | 700 | 2094@51 | OWL |
LT245/75R16 120R | 01222 | E | 47.6 | 7 | 6.5 - 8.0 | 9.7 | 30.7 | 7.6 | 16 | 14.5 | 674 | 3042@80 | OWL | |
255/65R16 109H | 01241 | SL | 500/A/A | 35.2 | 7.5 | 7.0 - 9.0 | 10.4 | 29.1 | 8 | 13 | 13.1 | 713 | 2271@51 | BW |
P255/70R16 109S | 01238 | SL | 500/A/B | 37 | 7.5 | 6.5 - 8.5 | 10.2 | 30.3 | 8 | 13 | 13.6 | 685 | 2271@51 | OWL |
P265/70R16 111S | 01233 | SL | 500/A/B | 39.2 | 8 | 7.0 - 9.0 | 10.9 | 30.7 | 8.3 | 14 | 13.7 | 676 | 2403@51 | OWL |
LT265/75R16 123R | 01254 | E | 50.9 | 7.5 | 7.0 - 8.0 | 10.6 | 31.9 | 8.3 | 17 | 15.2 | 648 | 3415@80 | BW | |
LT265/75R16 119R | 01226 | D | 49.6 | 7.5 | 7.0 - 8.5 | 10.7 | 31.9 | 8.3 | 17 | 15.3 | 647 | 3000@65 | OWL | |
275/70R16 114S | 01240 | SL | 500/A/B | 42.7 | 8 | 7.0 - 9.0 | 10.9 | 31.4 | 8.6 | 13 | 14 | 662 | 2601@51 | BW |
LT285/75R16 122R | 01227 | D | 55.3 | 8 | 7.5 - 9.0 | 11.5 | 33.1 | 8.9 | 18 | 15.8 | 623 | 3305@65 | BW | |
LT315/75R16 121R | 01249 | D | 61.5 | 8.5 | 8.0 - 10.0 | 12.6 | 34.5 | 9.8 | 18 | 16.3 | 602 | 3195@50 | BW | |
37X12.50R17 124R | 01273 | D | 71.6 | 10 | 8.5 - 11.0 | 12.9 | 36.5 | 9.8 | 17 | 17.4 | 573 | 3525@50 | BW | |
215/60R17 96H | 01299 | SL | 500/A/A | 26.8 | 6.5 | 6.0-7.5 | 8.7 | 27.1 | 6.7 | 12 | 12.4 | 767 | 1565@51 | BW |
225/60R17 99H | 01263 | SL | 500/A/A | 29.7 | 6.5 | 6.0 - 8.0 | 9.1 | 27.6 | 7 | 12 | 12.6 | 751 | 1709@51 | BW |
225/65R17 102H | 01266 | SL | 500/A/A | 31.1 | 6.5 | 6.0 - 7.5 | 9.1 | 28.5 | 7 | 12 | 13 | 728 | 1874@51 | BW |
225/70R17 108T | 01267 | XL | 500/A/B | 33.2 | 6.5 | 6.0 - 7.5 | 9.1 | 29.6 | 7 | 13 | 13.4 | 701 | 2205@50 | BW |
235/65R17 108H | 01247 | XL | 500/A/A | 33.7 | 7 | 6.5 - 8.5 | 9.4 | 29.2 | 7.3 | 13 | 13.2 | 712 | 2205@50 | BW |
P235/70R17 108S | 01268 | XL | 500/A/B | 36.2 | 7 | 6.0 - 8.0 | 9.5 | 30.3 | 7.3 | 13 | 13.7 | 686 | 2205@50 | OWL |
LT235/80R17 120R | 01293 | E | 52 | 6.5 | 6.0-7.5 | 9.1 | 32 | 7.3 | 16 | 15.1 | 654 | 3085@80 | BW | |
245/65R17 107H | 01252 | SL | 500/A/A | 34.8 | 7 | 7.0 - 8.5 | 9.6 | 29.6 | 7.6 | 13 | 13.4 | 701 | 2149@51 | BW |
LT245/70R17 119R | 01251 | E | 46.9 | 7 | 6.5 - 8.0 | 9.6 | 30.8 | 7.6 | 17 | 14.6 | 673 | 3000@80 | BW | |
LT245/75R17 121R | 01295 | E | 44.8 | 7 | 6.5-7.5 | 9.6 | 31.8 | 7.6 | 17 | 15 | 656 | 3195@80 | BW | |
255/65R17 110H | 01250 | SL | 500/A/A | 36.6 | 7.5 | 7.0 - 9.0 | 10.2 | 30.3 | 8 | 13 | 13.7 | 685 | 2337@51 | BW |
P255/70R17 110S | 01269 | SL | 500/A/B | 40.1 | 7.5 | 6.5 - 8.5 | 10.2 | 31.3 | 8 | 13 | 14.1 | 664 | 2337@51 | OWL |
265/65R17 112H | 01246 | SL | 500/A/A | 38.1 | 8 | 7.5 - 9.5 | 10.7 | 30.7 | 8.3 | 14 | 13.9 | 675 | 2469@51 | BW |
P265/70R17 113S | 01237 | SL | 500/A/B | 40.8 | 8 | 7.0 - 9.0 | 10.8 | 31.9 | 8.3 | 14 | 14.3 | 651 | 2535@51 | OWL |
LT265/70R17 121R | 01234 | E | 52.2 | 8 | 7.0 - 8.5 | 10.5 | 32 | 8.3 | 17 | 15 | 651 | 3195@80 | BW | |
P275/60R17 110S | 01264 | SL | 500/A/B | 43.7 | 8 | 7.5 - 9.5 | 11.1 | 30.1 | 8.6 | 13 | 13.6 | 690 | 2337@51 | OWL |
275/65R17 115H | 01248 | SL | 500/A/A | 41.5 | 8 | 7.5 - 9.5 | 11 | 31.3 | 8.6 | 13 | 14.1 | 664 | 2679@51 | BW |
285/65R17 116H | 01298 | SL | 500/A/A | 42.6 | 8.5 | 8.0-10.0 | 11.2 | 31.6 | 8.9 | 13 | 14.2 | 658 | 2756@51 | BW |
LT285/70R17 121R | 01292 | D | 56.2 | 8.5 | 7.5-9.0 | 11.3 | 33.1 | 8.9 | 18 | 15.8 | 629 | 3195@65 | BW | |
LT315/70R17 121R | 01225 | D | 61.9 | 9.5 | 8.5 - 10 | 12.5 | 34.6 | 9.8 | 18 | 16.3 | 601 | 3195@50 | BW | |
37X12.50R18 123R | 01275 | D | 73.8 | 10 | 8.5-11.0 | 12.7 | 36.6 | 9.8 | 18 | 17.4 | 579 | 3415@50 | BW | |
225/55R18 98H | 01300 | SL | 500/A/A | 28.5 | 7 | 6.0-8.0 | 9.1 | 27.8 | 7.3 | 12 | 12.8 | 748 | 1653@51 | BW |
265/60R18 110H | 01270 | SL | 500/A/A | 41 | 8 | 7.5 - 9.5 | 10.8 | 30.5 | 8.3 | 13 | 13.9 | 681 | 2337@51 | BW |
P265/70R18 114S | 01272 | SL | 500/A/B | 41.4 | 8 | 7.0 - 9.0 | 10.8 | 32.8 | 8.3 | 14 | 14.8 | 663 | 2601@51 | BW |
275/60R18 112H | 01271 | SL | 500/A/A | 41.9 | 8 | 7.5 - 9.5 | 11.1 | 31 | 8.6 | 12 | 14.1 | 669 | 2469@51 | BW |
LT275/65R18 113S | 01265 | C | 52 | 8 | 7.5 - 9.0 | 11.1 | 32.3 | 8.6 | 17 | 15.2 | 649 | 2535@50 | OWL | |
LT275/65R18 123R | 01296 | E | 57 | 8 | 7.5-9.0 | 11 | 32.4 | 8.6 | 18 | 15.4 | 644 | 3415@80 | BW | |
285/60R18 116H | 01297 | SL | 500/A/A | 42.5 | 8.5 | 8.0-10.0 | 11.5 | 31.6 | 8.9 | 13 | 14.3 | 658 | 2756@51 | BW |
LT285/65R18 121R | 01301 | D | 54.6 | 8.5 | 8.0-10.0 | 11.1 | 32.6 | 8.9 | 17 | 15.3 | 648 | 3195@65 | BW | |
37X12.50R20 120R | 01276 | D | 73.3 | 10 | 8.5-11.0 | 12.2 | 36.7 | 9.8 | 18 | 17.5 | 577 | 3085@50 | BW | |
275/55R20 117S | 01278 | XL | 500/A/B | 41.3 | 8.5 | 7.5-9.5 | 11 | 32 | 9 | 13 | 14.7 | 648 | 2833@50 | BW |
275/60R20 115S | 01279 | SL | 500/A/B | 43.8 | 8 | 7.5-9.5 | 11.1 | 33.5 | 8.6 | 13 | 15.2 | 621 | 2679@51 | BW |
305/45R20 112H | 01242 | SL | 500/A/A | 45 | 10 | 9.5 - 11.5 | 11.7 | 31.1 | 10.9 | 14 | 14.3 | 669 | 2469@51 | BW |
305/50R20 120S | 01280 | XL | 500/A/B | 48.5 | 9.5 | 8.5-11.0 | 12.6 | 32.4 | 10.9 | 14 | 14.8 | 640 | 3086@50 | BW |
LT325/60R20 121S | 01303 | D | 69.4 | 9.5 | 9.0-12.0 | 13 | 35.7 | 10.6 | 17 | 17.1 | 581 | 3195@50 | BW |
